Product Summary
The CY7C68013A-100AXC is a EZ-USB FX2LP USB Microcontroller and high speed USB Peripheral Controller.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Supplied (Commercial): 0℃ to +70℃; (3)Ambient Temperature with Power Supplied (Industrial): –40℃ to + 105℃; (4)Supply Voltage to Ground Potential: –0.5V to +4.0V; (5)DC Input Voltage to Any Input Pin[15]: 5.25V; (6)DC Voltage Applied to Outputs; (7)in High Z State: –0.5V to VCC + 0.5V; (8)Power Dissipation: 300 mW; (9)Static Discharge Voltage: >2000V.
Features
Features: (1)USB 2.0 USB IF High Speed Certified (TID # 40460272); (2)Single Chip Integrated USB 2.0 Transceiver, Smart SIE, and Enhanced 8051 Microprocessor; (3)Fit, Form, and Function Compatible with the FX2: Pin compatible, Object-code-compatible, Functionally Compatible (FX2LP is a superset); (4)Ultra Low Power: ICC No More than 85 mA in any Mode: Ideal for bus and battery powered applications.

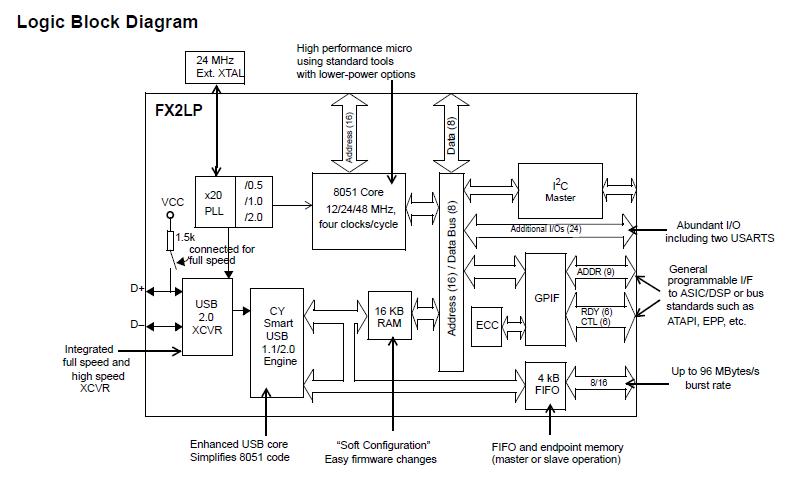

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7C68013A-100AXC |
Cypress Semiconductor |
8-bit Microcontrollers (MCU) EZ USB FX2LP LO PWR Hi COM |
Data Sheet |
|
|
||||||||||||
