Product Summary
The A6841SLWTR-20-T is a 8-bit serial input latched sink driver. It is suitable for relays, solenoids and inductive loads.
Parametrics
Absolute maximum ratings: (1)Output Voltage: VCE: 50 V; VCE(SUS) (for inductiove load applications): 35V; (2)Logic Supply Voltage, VDD: 7 V; (3)Emitter Supply Voltage, VEE: –20 V; (4)Input Voltage Range, VIN: –0.3 V to VDD +0.3 V; (5)Continuous Output Current (each output), IOUT: 500 mA; (6)Package Power Dissipation, PD, see chart, page 6; (7)Operating Temperature Range: Ambient Temperature, TA: –20℃ to +85℃; Storage Temperature, TS: –55℃ to +150℃.
Features
Features: (1)3.3 V to 5 V logic supply range; (2)Power on reset (POR); (3)To 10 MHz data input rate; (4)CMOS, TTL compatible inputs; (5)-40℃ operation available; (6)Low-power CMOS logic and latches; (7)Schmitt trigger inputs for improved noise immunity; (8)High-voltage current-sink outputs; (9)Internal pull-up/pull down resistors; (10)Output transient-protection diodes; (11)Single or split supply operation.

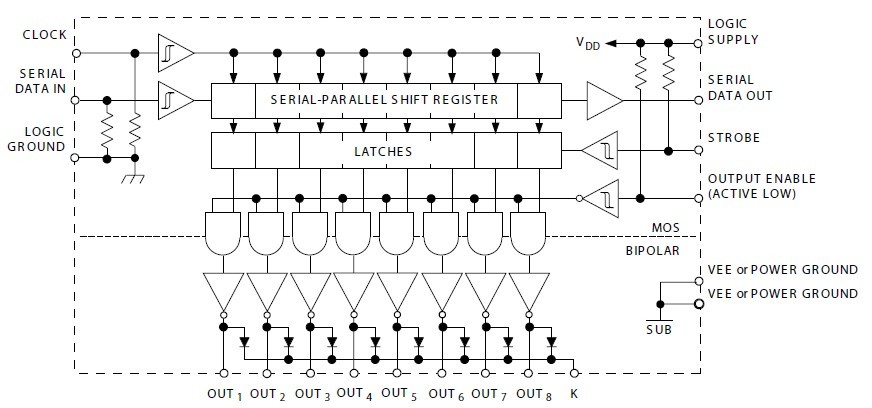

Diagrams
