Product Summary
The MPC8313EVRAFF incorporates the e300c3 core, which includes 16 Kbytes of L1 instruction and data caches and on-chip memory management units (MMUs). The MPC8313EVRAFF has interfaces to dual enhanced three-speed 10/100/1000 Mbps Ethernet controllers, a DDR1/DDR2 SDRAM memory controller, an enhanced local bus controller, a 32-bit PCI controller, a dedicated security engine, a USB 2.0 dual-role controller and an on-chip full-speed PHY, a programmable interrupt controller, dual I2C controllers, a 4-channel DMA controller, and a general-purpose I/O port.
Parametrics
Absolute maximum ratings: (1)Core supply voltage: –0.3 to 1.26 V; (2)PLL supply voltage: –0.3 to 1.26 V; (3)Core power supply for SerDes transceivers: –0.3 to 1.26 V; (4)Pad power supply for SerDes transceivers: –0.3 to 1.26 V; (5)DDR and DDR2 DRAM I/O voltage: –0.3 to 2.75 V; (6)PCI, local bus, DUART, system control and power management, I2C, and JTAG I/O voltage: –0.3 to 3.6 V; (7)eTSEC, USB: –0.3 to 3.6 V.
Features
Features: (1)Embedded PowerPC e300 processor core built on Power Architecture technology; operates at up to 333 MHz.; (2)High-performance, low-power, and cost-effective host processor; (3)DDR1/DDR2 memory controller-one 16-/32-bit interface at up to 333 MHz supporting both DDR1 and DDR2; (4)16-Kbyte instruction cache and 16-Kbyte data cache, a floating point unit, and two integer units; (5)Peripheral interfaces such as 32-bit PCI interface with up to 66-MHz operation, 16-bit enhanced local bus interface with up to 66-MHz operation, and USB 2.0 (full speed) with an on-chip PHY.

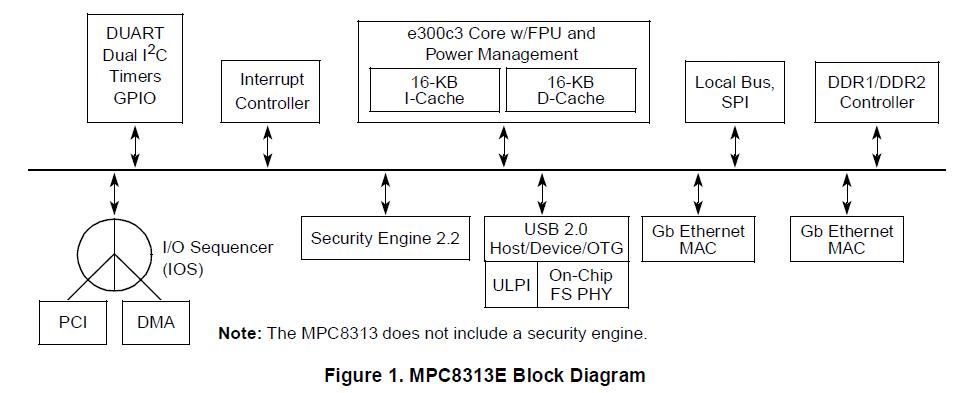

Diagrams
