Product Summary

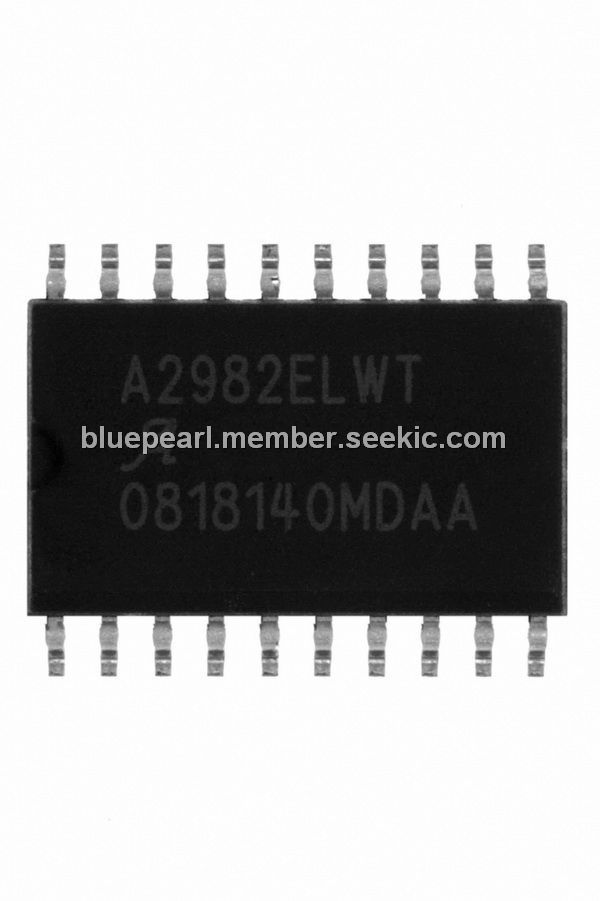

The A2982ELWTR-T is a 8-channel source driver. It is useful for interfacing between low-level logic and high-current loads. Typical loads include relays, solenoids, lamps, stepper and/or servo motors, print hammers, and LEDs.
Parametrics
Absolute maximum ratings: (1)Output Voltage Range: 5 to 50 V; (2)Input Voltage: 20 V; (3)Output Current: –500 mA; (4)Operating Ambient Temperature: Range E: –40 to 85 ℃, Range S: –20 to 85 ℃; (5)Maximum Junction Temperature: 150 ℃; (6)Storage Temperature: –55 to 150 ℃.
Features
Features: (1)TTL, DTL, PMOS, or CMOS compatible inputs; (2)500 mA output source current capability; (3)Transient-protected outputs; (4)Output breakdown voltage to 50 V; (5)DIP or SOIC packaging.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

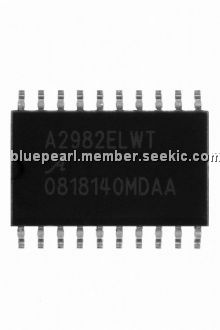

 A2982ELWTR-T |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
|
A2982ELW-T |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
A2982ELWTR |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
A2982ELWTR-T |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
A2982SLW |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
A2982SLW-T |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
A2982SLWTR-T |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
|
|
||||||||||||||||||
