Product Summary
The A6818EEPTR-T device combines a 32-bit CMOS shift register, accompanying data latches and control circuitry, with bipolar sourcing outputs and PNP active pull-downs. Designed primarily to drive vacuum-fluorescent displays, the 60 V and –40 mA output ratings also allow this device to be used in many other peripheral power driver applications. The A6818EEPTR-T features an increased data-input rate (compared with the older UCN/UCQ5818x) and a controlled output slew rate.
Parametrics
Absolute maximum ratings: (1)Logic Supply Voltage: 7.0 V; (2)Driver Supply Voltage: 60 V; (3)Input Voltage Range: VIN –0.3 to VDD + 0.3 V; (4)Continuous Output Current Range: –40 to 15 mA; (5)Operating Ambient Temperature: Range E: –40 to 85 ℃, Range K: –40 to 125 oC, Range S: –20 to 85 ℃; (6)Maximum Junction Temperature: 150 ℃; (7)Storage Temperature: –55 to 125 ℃.
Features
Features: (1)Controlled output slew rate; (2)60 V minimum output break down; (3)PNP active pull-downs; (4)Low-power CMOS logic and latches; (5)High-speed data storage; (6)High data-input rate; (7)Low output-saturation voltages; (8)Improved replacements for SN75518N, SN75518NF, UCN5818x, and UCQ5818x.

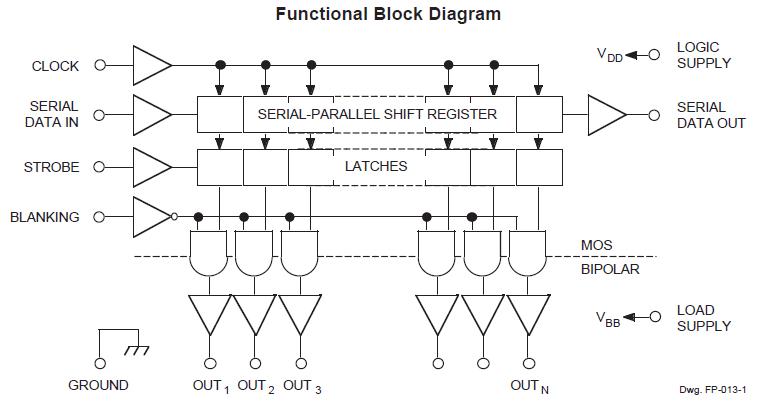

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A6818EEPTR-T |
|
IC SOURCE DRVR 32BIT SER 44PLCC |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
A6810EA |
|
IC SOURCE DRVR 10BIT SER 18-DIP |
Data Sheet |
Negotiable |
|
||||||
|
A6810EA-T |
|
IC SOURCE DRVR 10BIT SER 18-DIP |
Data Sheet |
Negotiable |
|
||||||
 |
A6810ELW |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
Negotiable |
|
||||||
|
A6810ELW-T |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
|
|
||||||
|
A6810ELWTR |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
Negotiable |
|
||||||
|
A6810ELWTR-T |
|
IC SOURCE DRVR 10BIT SER 20SOIC |
Data Sheet |
Negotiable |
|
||||||
