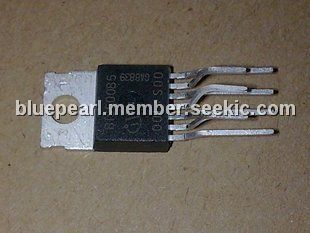

BTS50085-1TMB

Power Switch, Smart Highside, High Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.90~4.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.90~4.20

PartNumber:: BTS50085-1TMB

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sunny Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-05-03

From Other Seller

Part Number:BTS50085-1TMB
US $3.90 - 4.20
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
STK795-820

US $20.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

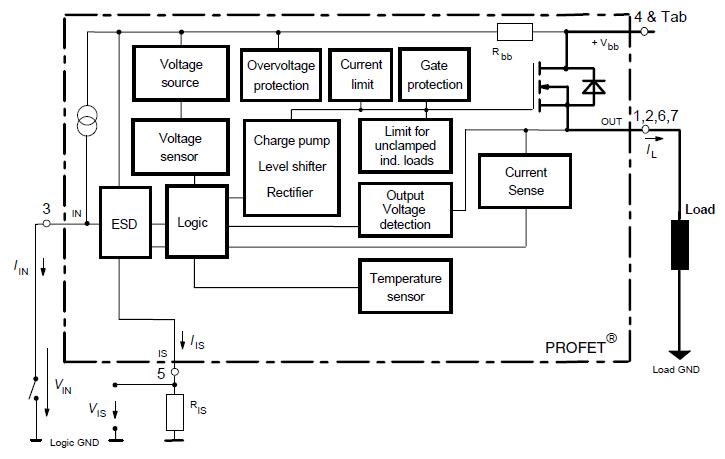

The BTS50085-1TMB is a Smart Highside High Current Power Switch. Its N channel vertical power FET is with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS chip on chip technology. Providing embedded protection functions.
